60KW Induction Melting Machines 10-50khz Induction Heating Equipment

Name: 60KW Induction Melting Machines 1050khz Induction Heating Equipment
Brand: InductionFusion
Price: 1 USD

Wholesale 60KW Induction Melting Machines 10-50khz Induction Heating Equipment from china suppliers

Brand Name : InductionFusion

Model Number : IF-60AB

Certification : CE, SGS , ROHS

Place of Origin : china

MOQ : 1 set

Price : negotiation

Payment Terms : T/T,Western Union

Supply Ability : 500set/month

Delivery Time : 7~15days

Packaging Details : wooden box

Heating Principle : Magnetic Field Induction Heating

Applicable Industries : Brazing, Melting

Certificate : CE , SGS , ROHS

Fluctuating frequency : 10-50khz

Contact Now

60KW With Industrial Chiller Metal Heat Treatment Machine 10-50khz Fluctualting Frequency

Features:

- This equipment adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.

- It has such feaures as high power, fast heating speed, high efficiency and easy operation.

- As compared with other heating modes, it can significantly promote the economic benefits, improve the quality of heated work pieces and save the energy and material, alleviate labor intensity and improve the production environment.

- It has super small size, which can save the production space by 10 times.

- It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.

- The comprehensive full load design is available for 24-hour continuous operation.

Technical Parameter of model IF-60AB Induction Heating Equipemnt :

Model	IF-60AB (Three phase)
Work power	340v-430v
Maximum input current	90A
Output power	60kw
Fluctualting frequency	10-50khz
Output current	400-2400A
The flow rate of cooling water	0.08-0.16Mpa 9L/Min
Water temperature protection point	50C
Product size	main :690x640x1060 mm
Product size	transformer : 870x430x750 mm
Net weight	main : 95 kg
Net weight	transformer : 79.5kg

Technical Parameter of model IF-5HP Industrial Chiller :

Type	IF	5HP
Refrigeration Capacity	W	13350
	Kcal/hr	11481
	USRT	3.8
Input Power		5HP
Compressor	Refrigeration system	1
	Type/refrigeration	Scroll/R22/R407C
	Power supply	380V-3Ph-50Hz
	Refrigeration Control	External Equalizer Thermal Expansion Valve
Evaporator	Type	Finned-tube Condenser
	Fan Power(W)	250
	Type	Shell and Tube Evaporstor
	Water Flow Rate m3/h	2.3
	Pipe Size(IN)	4*1/2'
Water tank capacity	L	Standard
Water	Power(KW)	0.37
Water	Lift(m)	18
Protection Device		High/low pressure switch;fusible plug thermal overload;phase reversal relay Chilled water low temp switch
Dimension	Lenth(mm)	700
	Depth(mm)	1020
	Height(mm)	1245
Weight	KG	170
Noise	dB(A)	65

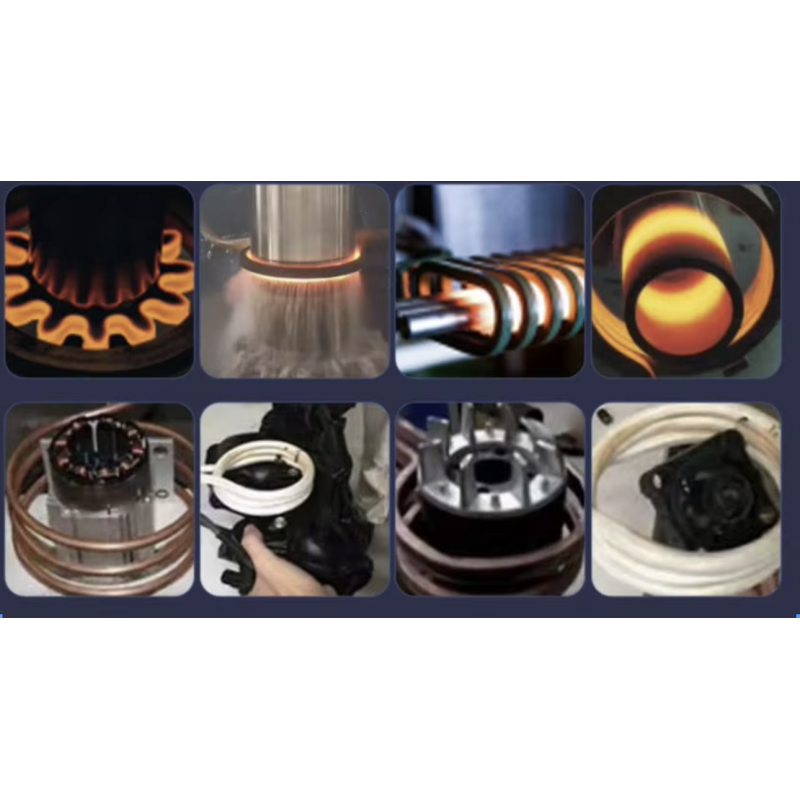

Application :

60KW Induction Melting Machines 10-50khz Induction Heating Equipment

Unleash the power of precision heating with our cutting-edge Induction Heater - revolutionize your experience, eliminate wasted time, and achieve unparalleled efficiency like never before!

the ultimate heating solution you've been waiting for. With cutting-edge electromagnetic technology, it heats materials faster,safer, and with precision. Say goodbye to open flames and welcome a new era of efficiency and versatility.

Our portable Induction Heater boasts a sleek design and intuitive controls, making it a breeze to use anywhere. Experience rapid heating and improved productivity, as energy transfers directly to the material, eliminating wasted time. Plus, our safety features ensure worry-free operation.

Achieve precise temperature control with adjustable power settings, guaranteeing optimal results every time. Save on energy costs and enjoy an eco-friendly alternative with reduced emissions. Upgrade your heating game with our Induction Heater and unlock a world of possibilities.

60KW Induction Melting Machines 10-50khz Induction Heating Equipment
